Twilio Authy

Cloud CMS supports Twilio Authy for Multifactor Authentication.

To configure Authy, you will need to supply the following:

  • apiUrl
  • apiSecret

These values are available from your Authy Settings page.

Service Descriptor

If you're adding an Authenticator via a Service Descriptor:

  • the Descriptor Type should be TWILIO_AUTHY.
  • the Descriptor Configuration should look like this:
{
    "enabled": true,
    "providerType": "authy",
    "providerConfig": {
        "apiKey": "MY_API_KEY",
        "apiUrl": "MY_API_URL"
    }
}

Where

  • MY_API_KEY (required) is your Authy API Key
  • MY_API_URL (optional) is your Authy endpoint URL (default is https://api.authy.com)

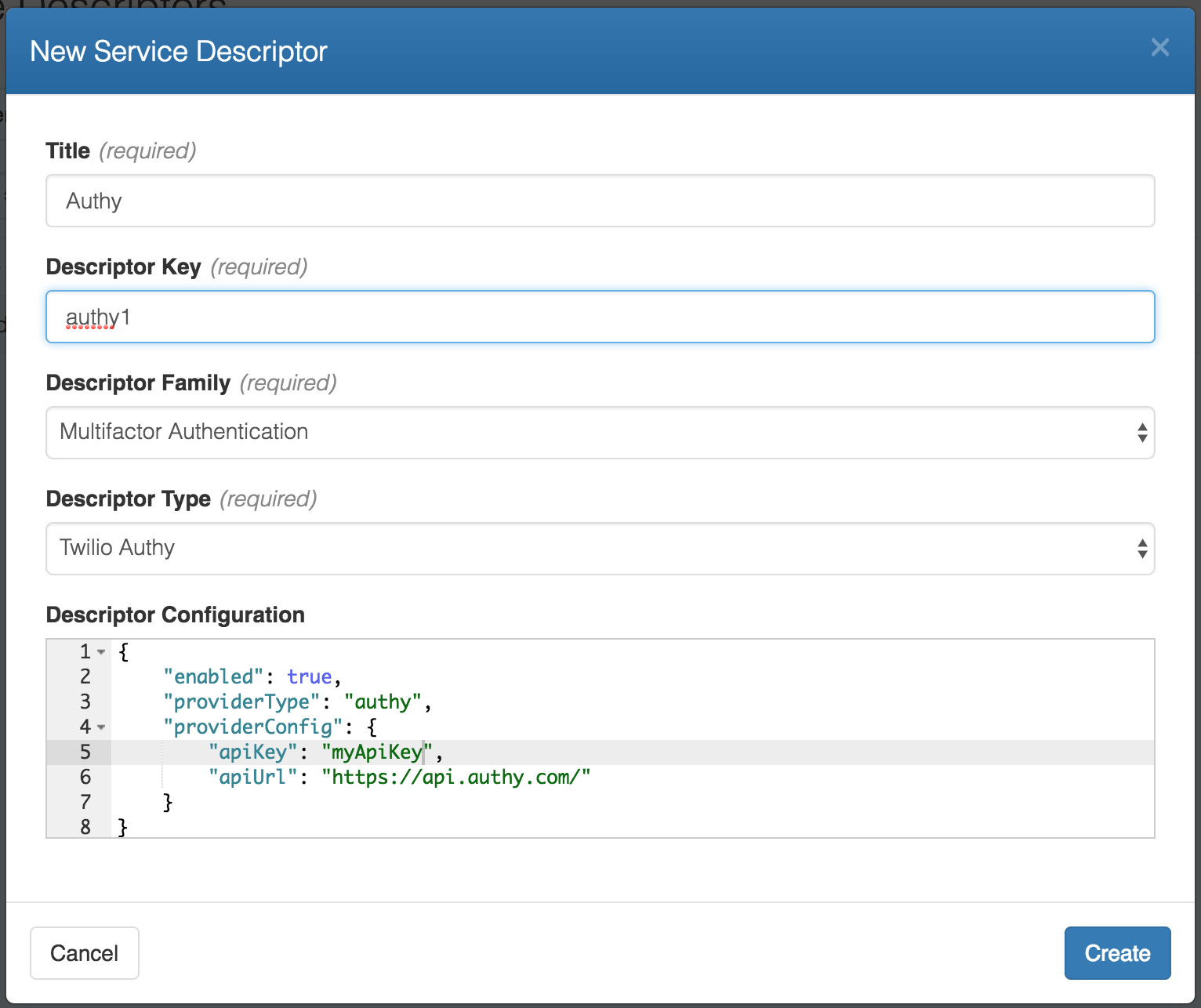

Here is a screenshot of some sample settings:


Global Settings

You can set up system-wide Authy configuration by adjusting the following in your docker.properties file:

org.gitana.platform.services.authenticator.authy.apiKey=
org.gitana.platform.services.authenticator.authy.apiUrl=

These settings will be used for any system-defined or service descriptor-defined Authenticators that do not provide these values.

System Authenticator

You can also instantiate system Authenticators like this:

<bean id="authyAuthenticatorRegistrar" class="org.gitana.platform.services.authenticator.AuthyAuthenticatorRegistrar">
    <property name="id"><value>MY_AUTHENTICATOR_ID</value></property>
    <property name="apiKey"><value>MY_API_KEY</value></property>
    <property name="apiUrl"><value>MY_API_URL</value></property>
</bean>

Where

  • MY_API_KEY (required) is your Authy API Key
  • MY_API_URL (optional) is your Authy endpoint URL (default is https://api.authy.com)

The MY_AUTHENTICATOR_ID value must be unique across all Authenticator instances for a given type.

These Authenticators will be available to your platform and can be defined and maintained within your Spring config.

Authy Binding Properties Factory

Use the AuthyAuthenticatorBindingPropertiesBeanFactory bean to create Authy-specific binding properties.

Like this:

<bean class="org.gitana.platform.services.authenticator.authy.AuthyAuthenticatorBindingPropertiesBeanFactory">
    <property name="authyId"><value>AUTHY_ID</value></property>
</bean>

Authy Descriptor Factory

Use the AuthyAuthenticatorDescriptorBeanFactory bean to create Authy-specific descriptors.

Like this:

<bean class="org.gitana.platform.services.authenticator.authy.AuthyAuthenticatorDescriptorBeanFactory">
    <property name="id"><value>MY_AUTHENTICATOR_ID</value></property>
</bean>

Example: Configure the Admin User to use Authy Security

Start by defining an authenticator called test:

<bean class="org.gitana.platform.services.authenticator.authy.AuthyAuthenticatorRegistrar">
    <property name="id"><value>test</value></property>
    <property name="apiKey"><value>API_KEY</value></property>
    <property name="apiUrl"><value>API_URL</value></property>
</bean>

Then bind the admin user to the authenticator using our factories from above:

<bean class="org.gitana.platform.services.authenticator.BindAdminUserSystemAuthenticator">
    <property name="bindingProperties">
        <bean class="org.gitana.platform.services.authenticator.authy.AuthyAuthenticatorBindingPropertiesBeanFactory">
            <property name="authyId"><value>AUTHY_ID</value></property>
        </bean>
    </property>
    <property name="descriptor">
        <bean class="org.gitana.platform.services.authenticator.authy.AuthyAuthenticatorDescriptorBeanFactory">
            <property name="id"><value>test</value></property>
        </bean>
    </property>
</bean>
