File Picker

ID: file-picker

The file-picker field type renders a modal picker for a file. This uses the File Folder service within Cloud CMS to let you browse through folder-based navigation. A breadcrumb is rendered at the top to help users step through the folder hierarchy.

Sample configuration:

{
    "type": "file-picker"
}

As with the node picker, the file picker should be modeled on top of either an object or an array field. The former is used for selection of a single node whereas the latter is used for selection of multiple nodes. The node selections are stored as object(s) and have a structure like this:

{
    "id": "1df59b00c7225162e9cd",
    "ref": "node://e86bb3527527046fc911/fcce75b88fa241485bca/b8ee3218cd279e7e834c/1df59b00c7225162e9cd",
    "title": "Templates",
    "qname": "o:1df59b00c7225162e9cd",
    "typeQName": "n:node"
}

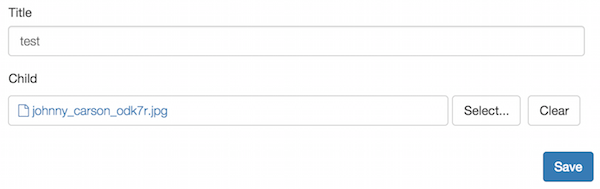

The file picker renders as a field like this:

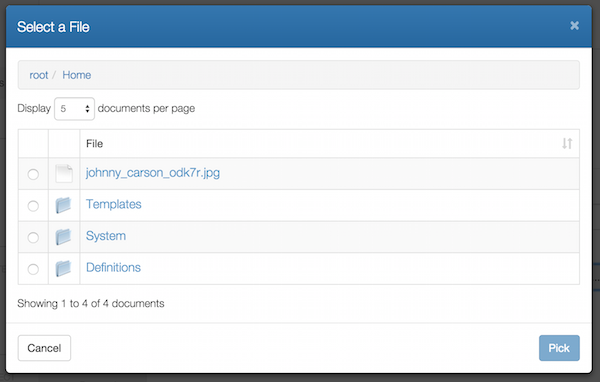

The Select button brings up a convenient modal for file and folder based navigation:

Options

The following options may be specified for the control:

Example: Customized File Pickers

This picker shows folders and allows for select of my:article and my:press-release content instances. In addition, it displays my:news-item instances but does not allow those to be picked.

{
    "type": "file-picker",
    "picker": {
        "allowPickContainers": false,
        "showFileTypes": ["my:article", "my:press-release", "my:news-item"],
        "pickableFileTypes": ["my:article", "my:press-release"]
    }
}

Here is a picker that simply opens up for content selection from the /content/images folder path. The end user will be able to dive down into child folders and up into parent folders but will not be able to go above the /content folder.

{
    "type": "file-picker",
    "picker": {
        "rootContainerPath": "/content",
        "initialContainerPath": "/content/images"
    }
}

Here is a picker which will browse all files in the /Images folder (and sub-folders) and only let us navigate into folders or select from files with binary attachments of specific types:

{
    "type": "file-picker",
    "picker": {
        "initialContainerPath": "/Images",
        "mimetypes": [
            "image/jpeg",
            "image/jpg",
            "image/png"
        ]
    }
}

Let's say we wanted to add more image mimetypes. At some point, this gets a little exhausting. We can do better by matching all mimetypes that are "image/*". Only we regex, so we do it like this:

{
    "type": "file-picker",
    "picker": {
        "initialContainerPath": "/Images",
        "mimetypeRegex": "image\/([^;\s]+)"
    }
}

Suppose we want our picker to let us pick from files in the /Images directory. We also want it to allow us to upload files to that directory. All uploaded files should be of type my:image.

{
    "type": "file-picker",
    "picker": {
        "initialContainerPath": "/Images",
        "rootContainerPath": "/Images",
        "uploadPath": "/Images",
        "uploadType": "my:image"
    }
}

Say if we want to restrict the size of files that get uploaded to be less than 2048 bytes:

{
    "type": "file-picker",
    "label": "My File Pikcer",
    "maxFileSize": 4096
}

Example: Restrict uploaded files

Suppose you have a content type with an array of related files. You wish for there to be a minimum of 2 files provided but no more than 5. You also want to restrict the end user to uploading image files of type JPEG.

You specify the array limits in the schema using the minItems and/or maxItems properties, like this:

{
    "title": "Thing",
    "type": "object",
    "properties": {
        "title": {
            "type": "string"
        },
        "files": {
            "type": "array",
            "items": {
                "type": "object"
            },
            "minItems": 2,
            "maxItems": 5,
            "_relator": {
                "nodeType": "n:node"
            }
        }
    }
}

The minItems and maxItems properties are used to ensure that the files array will have at least 2 items in it but no more than 5. This validation logic runs in the browser (to notify editors when these conditions are not met and prevent save). It also runs server side ahead of transaction commit.

The form is then used to further configure the UI picker, like this:

{
    "fields": {
        "title": {
            "label": "Title"
        },
        "files": {
            "label": "Related Files",
            "type": "file-picker",
            "picker": {
                "extensions": [
                    "jpeg",
                    "jpg"
                ],
                "maxFileSize": 1048576
            }
        }
    },
    "title": "Default Form"
}

Here, the picker upload is restricted to files whose extension is either .jpeg or .jpg. Furthermore, the uploaded files have a max size of 1 MB (or 1,048,576 bytes).
